Proprietary Technology Enabled for 3D reconstruction
Our unique technology “Photometric Stereo” has evolved over the last two decades with BTBP, from 3D human face reconstruction and skin surface measurements to microscopic Metrology. This combination brings the capabilities of multiple microscopes into just one.

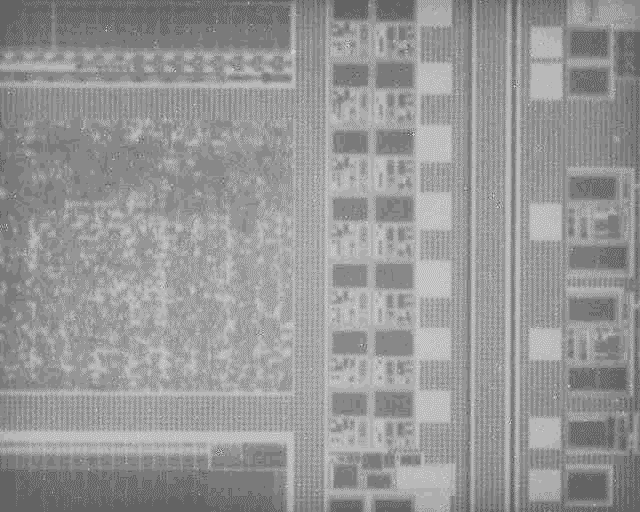

Photometric Stereo Comparison

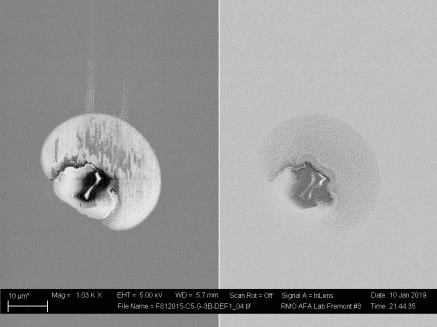

SEM
BTBP Clarity Pro
(Photometric Stereo)
AFM

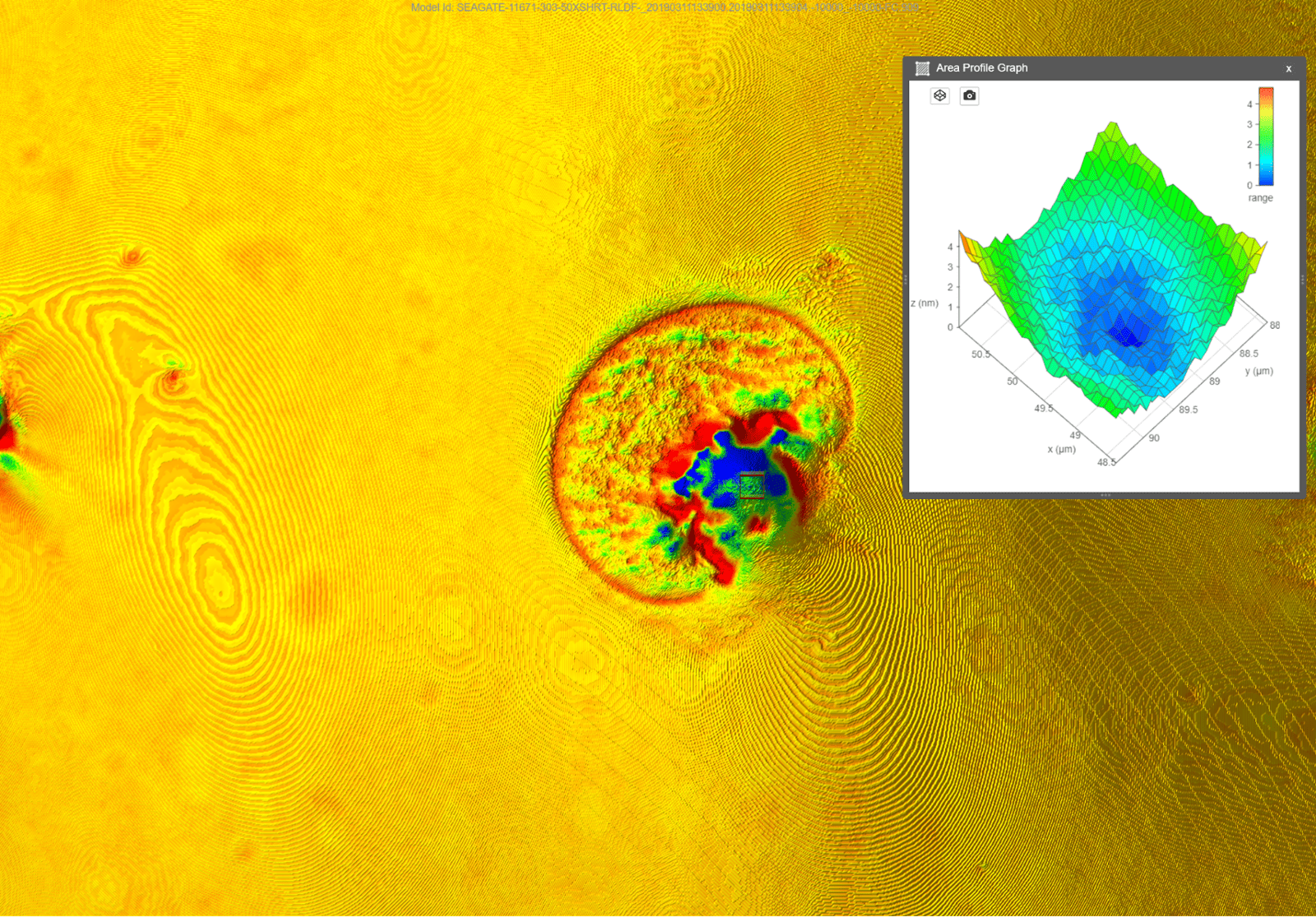

Comparison with AFM

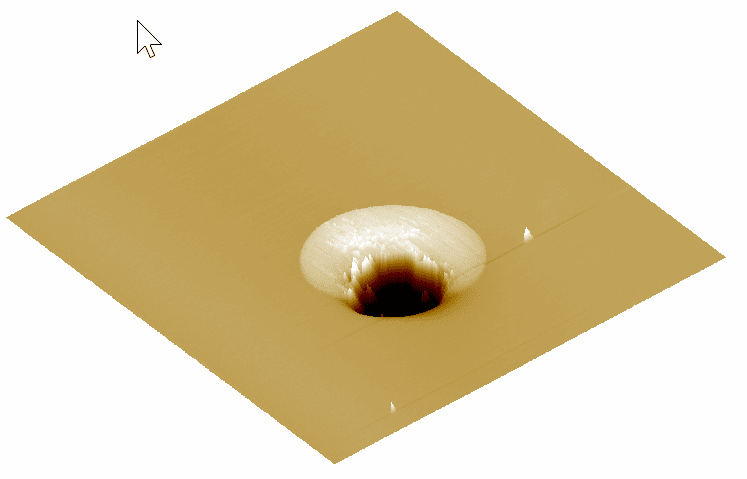

AFM

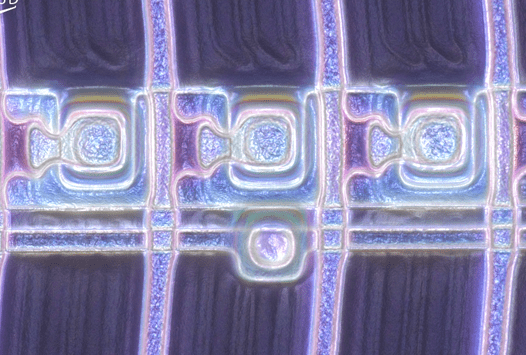

BTBP Clarity Pro Microscope
Details Beyond AFM
How does the Clarity Pro compare to a Laser Scanning Confocal?
Laser Scanning Confocal
BTBP Clarity Pro
Unprecedented Z-Axis
Greater than 5 microns
Down to a few Angstorms in
Z-Axis

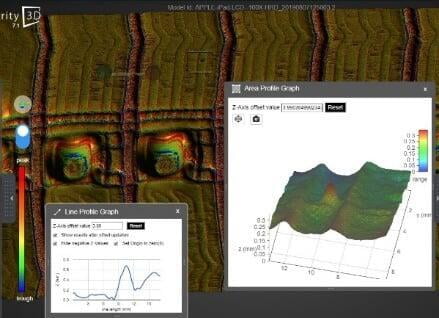

Analyze Surfaces

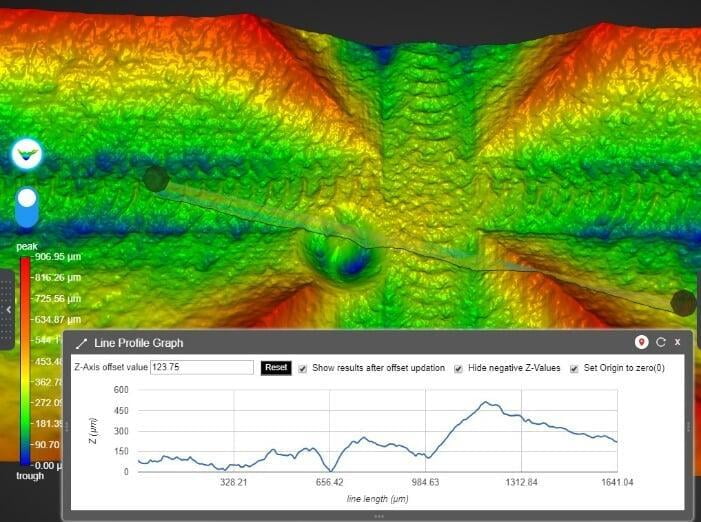

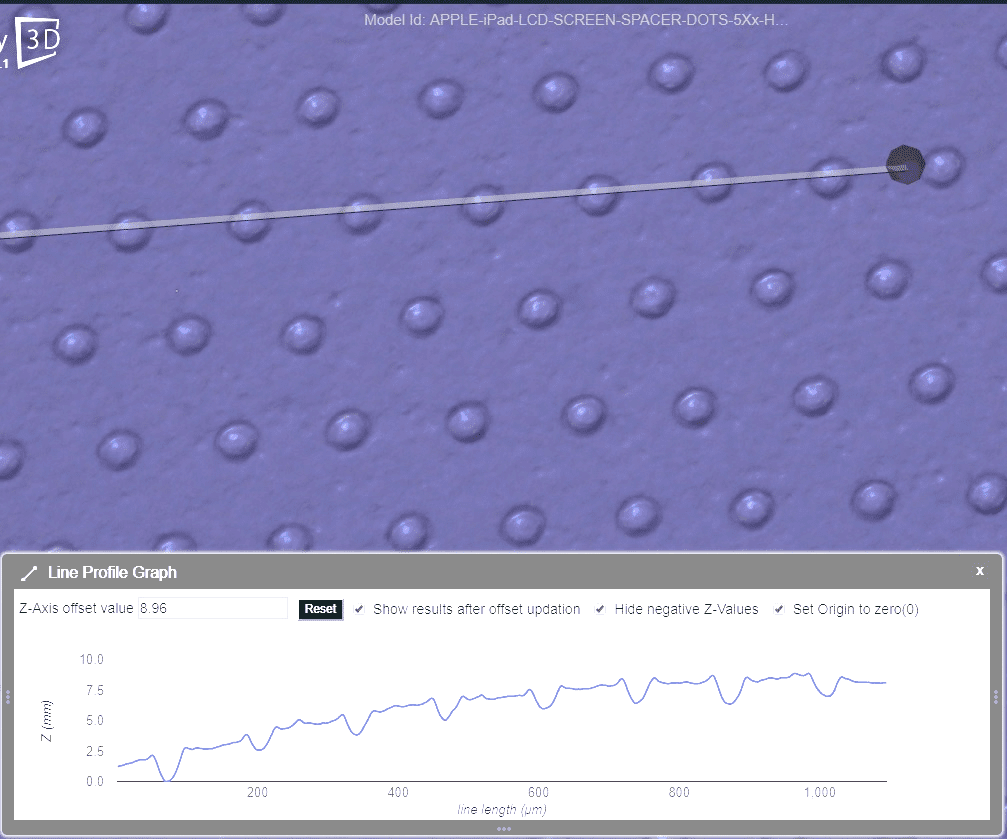

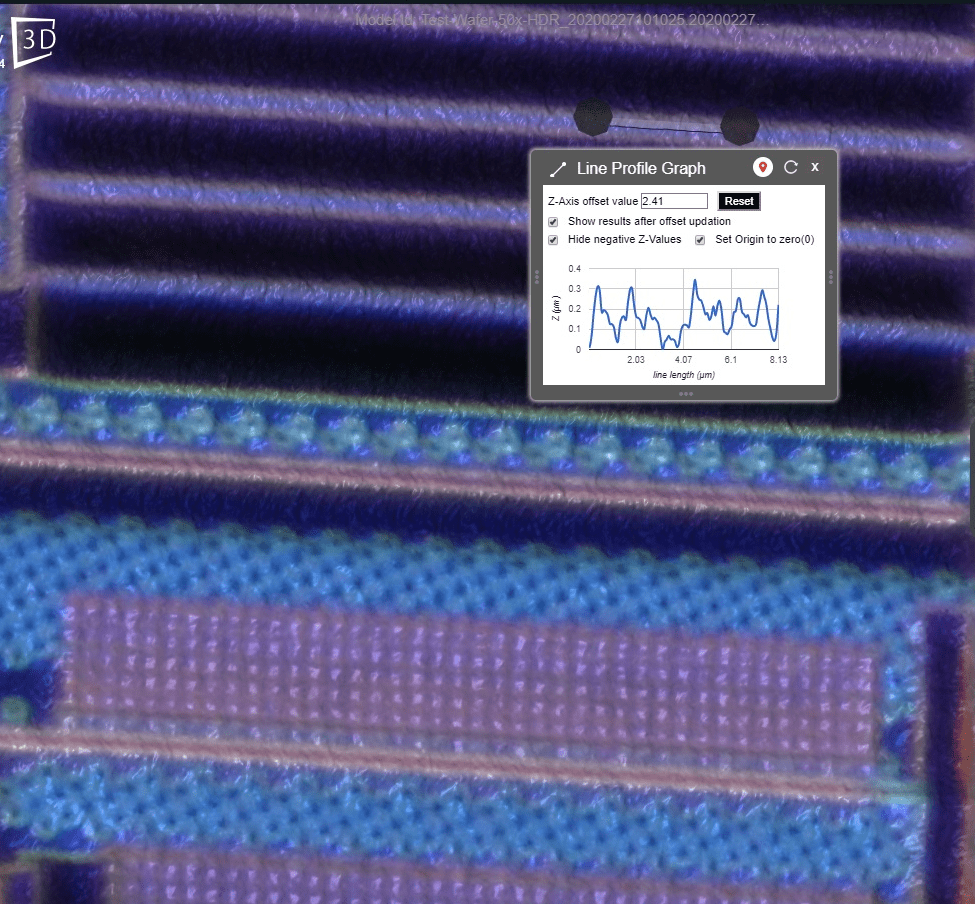

Analyze surface with one or multiple line-profiles

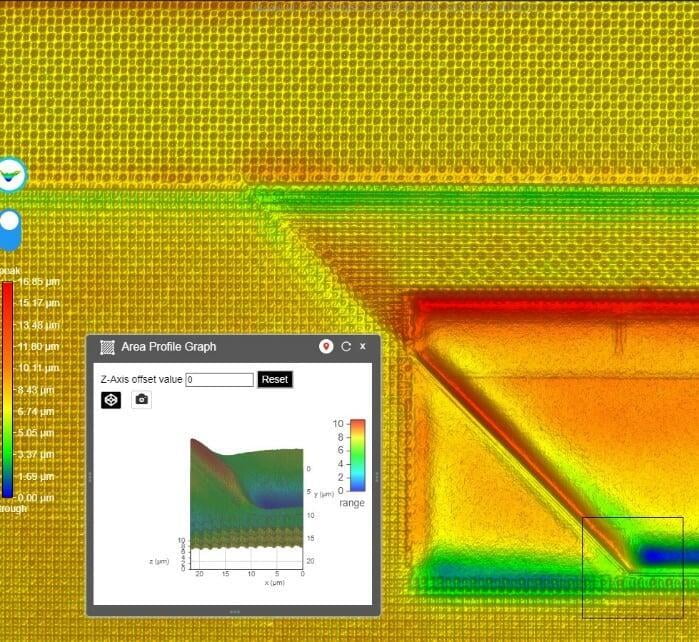

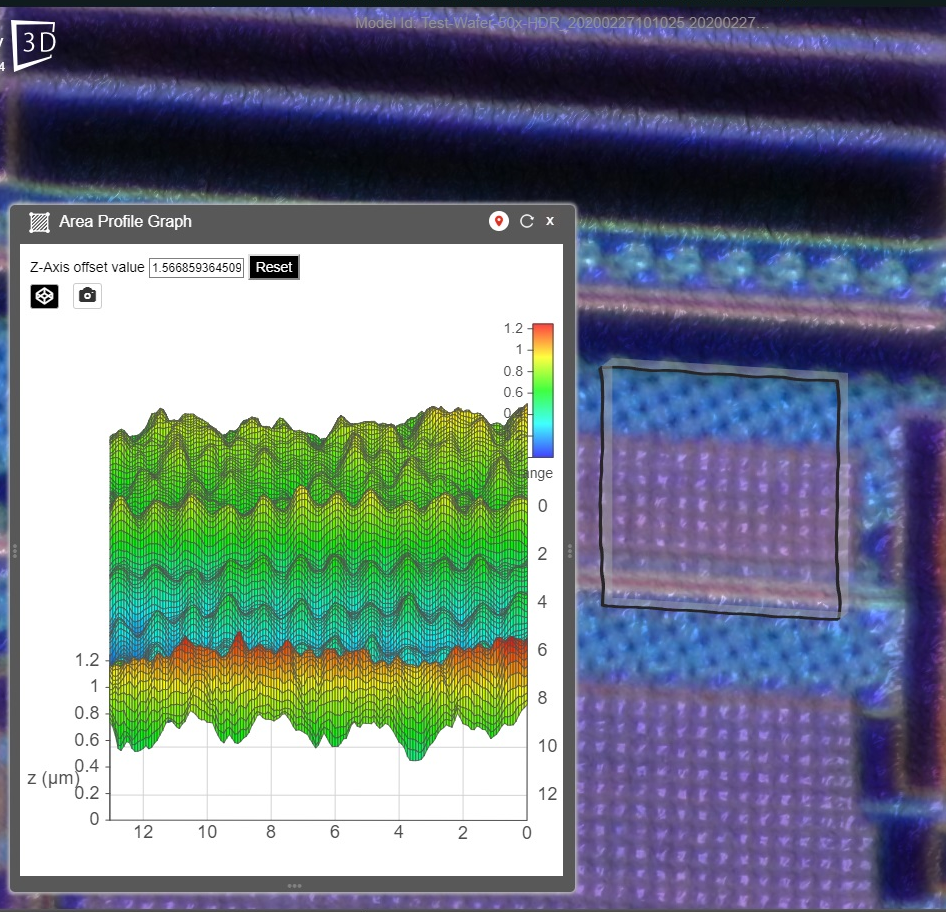

Analyze larger area surface profiles

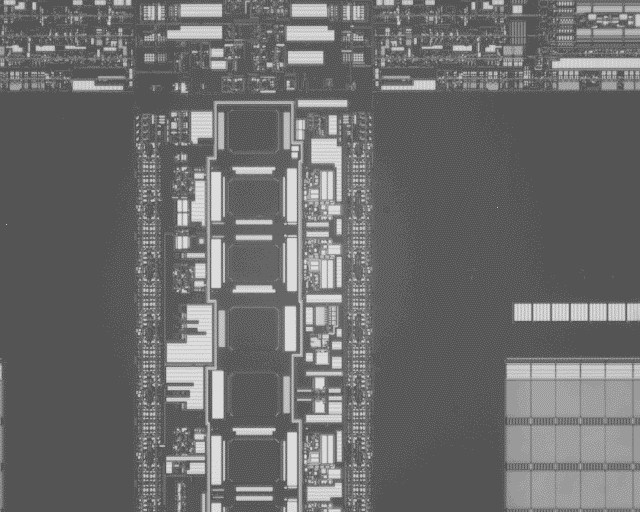

We can even add NIR imaging to this microscope and go far beyond your expectations.

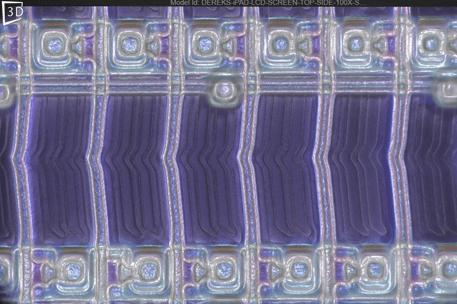

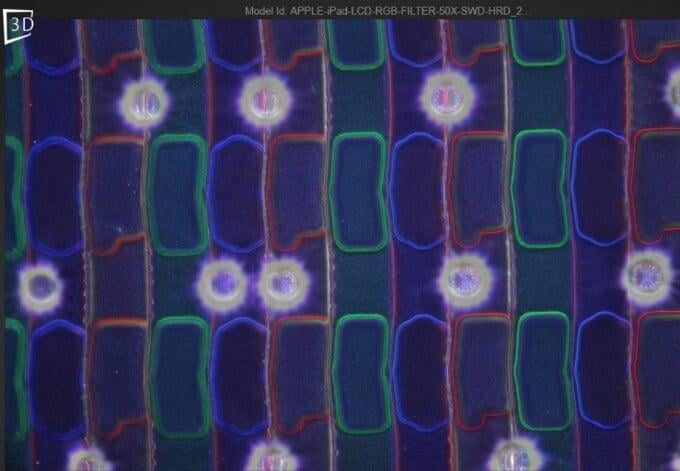

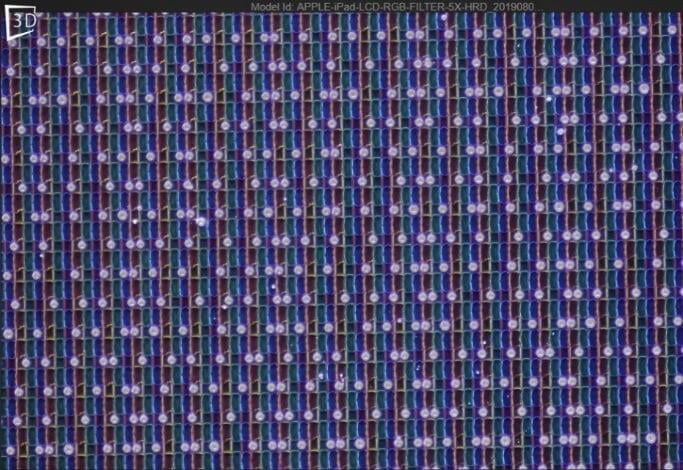

Quick and easy imaging and measurement of the many layer in a typical liquid crystal cell phone display
Try Us
If we haven’t met proof of concept with comparisons to SEM, AFM and Scanning Laser Confocal then we invite you to submit a sample of your own, that you have high resolution surface images of.
